Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
Approval: UL
Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location

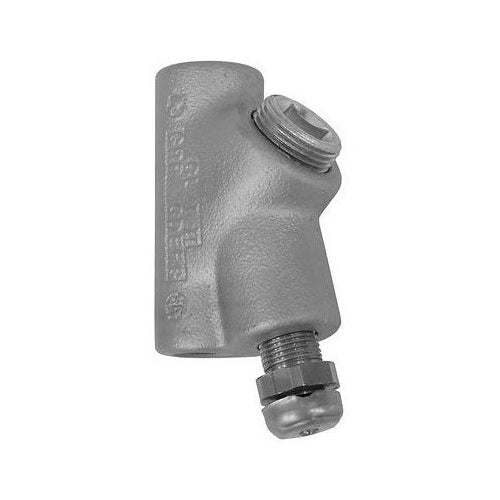

Catalog Number: EYD1
Brand Name: Unilet[R]
Model: EYD
Type: Drain
Turning Radius: 1.06 Inch
Trade Size: 1/2 Inch
Connection Type: Female, Female
Material: Epoxy Powder Coated Dichromate Zinc Electroplated Grayloy Iron
Catalog Description: UNILETS EYD SERIES 25 PCT FILL VERTICAL CONDUIT DRAIN SEALING FITTING, SIZE: 1/2 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED FNPT, TURNING RADIUS: 1.06 IN, LENGTH: 3.28 IN, WIDTH: 1-1/2 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, DIVISION 1 AND 2 GROUPS C, D, CLASS II, DIVISION 1 AND 2 GROUPS E, F, G, CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
Category: Steel Sealing Bodies
Full Technical Description: Drain Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1/2 Inch Trade Size; Vertical Mounting Position; 1.06 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 3.28 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYD Model
