Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
Approval: UL
Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location; Includes Removable Male Nipple

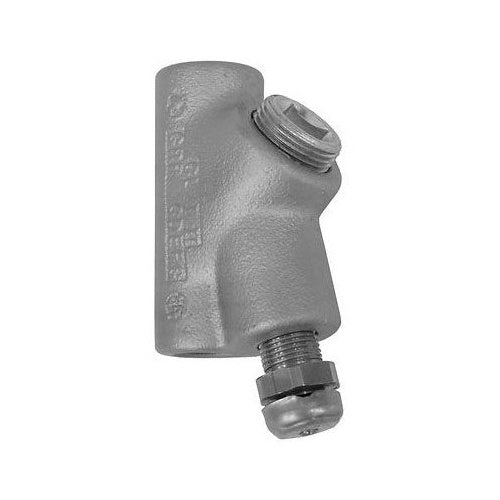

Catalog Number: EYD106
Brand Name: Unilet[R]
Model: EYD
Type: Drain
Turning Radius: 3.69 Inch
Trade Size: 4 Inch
Connection Type: Male, Female
Material: Epoxy Powder Coated Dichromate Zinc Electroplated Grayloy Iron
Catalog Description: EXPLOSIONPROOF RIGID/IMC CONDUIT SEAL, TYPE DRAIN, TURNING RADIUS 3.69 INCH, TRADE SIZE 4 INCH, CONNECTION TYPE MALE, FEMALE, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, MOUNTING POSITION VERTICAL, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, APPROVAL UL 886/E10444, CSA C22.2, SIZE 9.75 INCH L X 5.25 INCH W, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, RAINTIGHT, USED ON THREADED RIGID/IMC METAL CONDUIT, INCLUDES REMOVABLE MALE NIPPLE
Category: Steel Sealing Bodies
Full Technical Description: Drain Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 4 Inch Trade Size; Vertical Mounting Position; 3.69 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 9.75 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYD Model
