Enclosure: Class I Group B C D, Class II Group E F G, Class III
Approval: UL, CSA
Additional Information: Overall Dimension 5.06 Inch Length x 2.19 Inch Width; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC
Catalog Number: EYDEF100AL
Model: EYDEF
Type: Drain
Turning Radius: 1.75 Inch
Trade Size: 1 Inch
Connection Type: Female/Female
Material: Almag 35 Aluminum
Mounting Position: Vertical

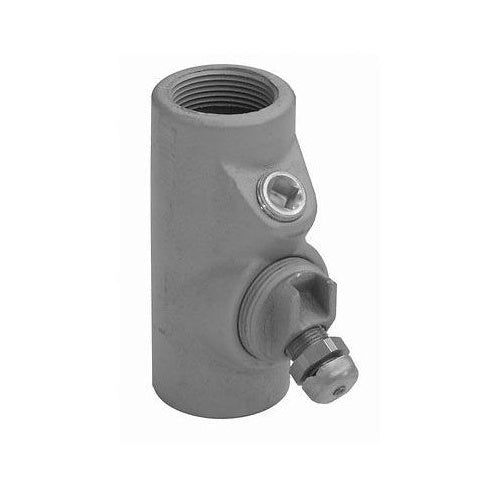

Catalog Description: UNILETS EY SERIES 40 PCT EXPANDED FILL VERTICAL DRAIN SEALING FITTING, SIZE: 1 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: FEMALE THREADED, TURNING RADIUS: 1-3/4 IN, LENGTH: 5.06 IN, WIDTH: 2.19 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, GROUPS B, C, D, CLASS II, GROUPS E, F, G, AND CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
Category: Aluminum Sealing Bodies
Full Technical Description: Drain Type; Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1 Inch Trade Size; Vertical Mounting Position; 1.75 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 5.06 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYDEF Model
