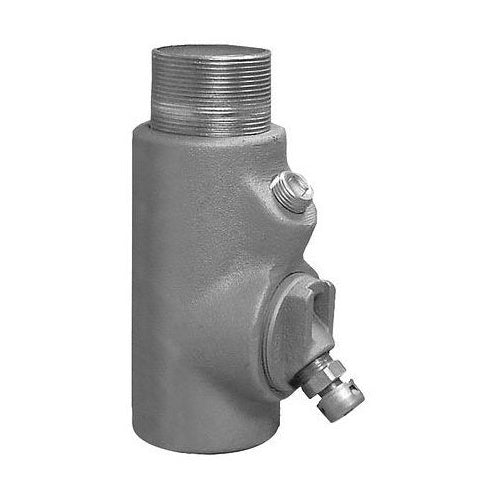

Appleton EYDM100 1" Malleable Drain Seal

Overview

Appleton EYDM100 1" Malleable Drain Seal

Product Specifications

• UPC: 78138123009
• Mounting Position: Vertical
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL, CSA C22.2
• Additional Information: Includes Removable Male Nipple
• Catalog Number: EYDM100
• Brand Name: Unilet[R]
• Model: EYDM
• Type: Drain
• Turning Radius: 2.06 Inch
• Trade Size: 1 Inch
• Connection Type: Male Threaded, Female Threaded
• Material: Epoxy Powder Coated/Dichromate/Zinc Electroplated Malleable Iron
• Catalog Description: UNILETS EYDM SERIES 25 PCT FILL VERTICAL CONDUIT DRAIN SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 1 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED MNPT X TAPERE
• Category: Steel Sealing Bodies
• Full Technical Description: Drain Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1 Inch Trade Size; Vertical Mounting Position; 2.38 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 4.31 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard CEC; EYDM Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381230094
• SKU Name: app eydm100
