Enclosure: CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III
Approval: UL
Additional Information: REMOVABLE MALE NIPPLE
Catalog Number: EYDM-125AL
Brand Name: UNILETS.
Model: EYDM
Type: DRAIN
Turning Radius: 1.75 INCH
Trade Size: 1-1/4 INCH
Connection Type: MALE, FEMALE
Material: EPOXY POWDER COATED ALMAG 35 ALUMINUM

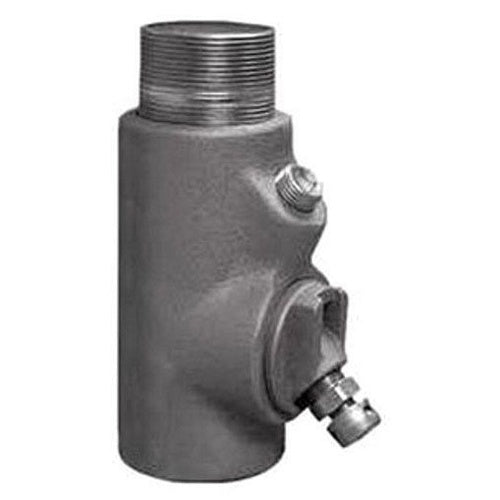

Catalog Description: UNILETS EYDM SERIES 25 PCT FILL VERTICAL CONDUIT DRAIN SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 1-1/4 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED MNPT X TAPERED FNPT, TURNING RADIUS: 1-3/4 IN, LENGTH: 4.94 IN, WIDTH: 2 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, GROUPS B, C, D, CLASS II, GROUPS E, F, G, AND CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
Category: Aluminum Sealing Bodies
Full Technical Description: Drain Type; Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1-1/4 Inch Trade Size; Vertical Mounting Position; 1.75 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 5.06 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYDM Model
