Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
Approval: UL
Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location; Includes Removable Male Nipple

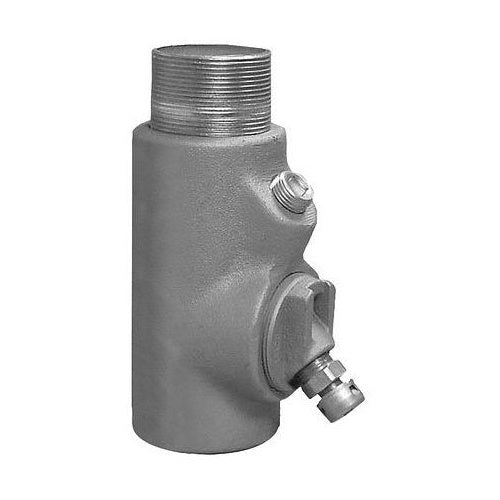

Catalog Number: EYDM150
Brand Name: Unilet[R]
Model: EYDM
Type: Drain
Turning Radius: 2.06 Inch
Trade Size: 1-1/2 Inch
Connection Type: Male, Female
Material: Epoxy Powder Coated Dichromate Zinc Electroplated Malleable Iron
Catalog Description: UNILETS EYDM SERIES 25 PCT FILL VERTICAL CONDUIT DRAIN SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 1-1/2 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED MNPT X TA
Category: Steel Sealing Bodies
Full Technical Description: Drain Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1-1/2 Inch Trade Size; Vertical Mounting Position; 2.06 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 5.5 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYDM Model
