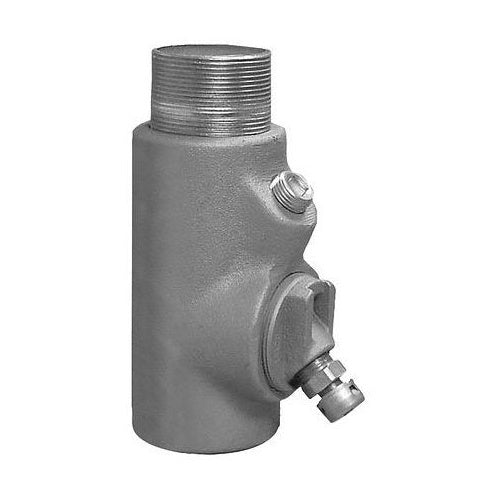

Appleton EYDM75 3/4" Malleable Drain Seal

Overview

Appleton EYDM75 3/4" Malleable Drain Seal

Product Specifications

• UPC: 78138123007
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL, CSA
• Additional Information: Overall Dimension 3.69 Inch Length x 1.75 Inch Width; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC, Mil-F-28675
• Catalog Number: EYDM75
• Model: EYDM
• Type: Drain
• Turning Radius: 1.19 Inch
• Trade Size: 3/4 Inch
• Connection Type: Male/Female
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Mounting Position: Vertical
• Catalog Description: UNILETS EYDM SERIES 25 PCT FILL VERTICAL CONDUIT DRAIN SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 3/4 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED MNPT X TAPER
• Category: Steel Sealing Bodies
• Full Technical Description: Drain Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/4 Inch Trade Size; Vertical Mounting Position; 1.91 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 3.69 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYDM Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381230070
• SKU Name: app eydm75
