Enclosure: CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III
Approval: UL
Additional Information: REMOVABLE MALE NIPPLE
Catalog Number: EYDM-75AL
Brand Name: UNILETS.
Model: EYDM
Type: DRAIN
Turning Radius: 1.94 INCH
Trade Size: 3/4 INCH
Connection Type: MALE, FEMALE
Material: EPOXY POWDER COATED ALMAG 35 ALUMINUM

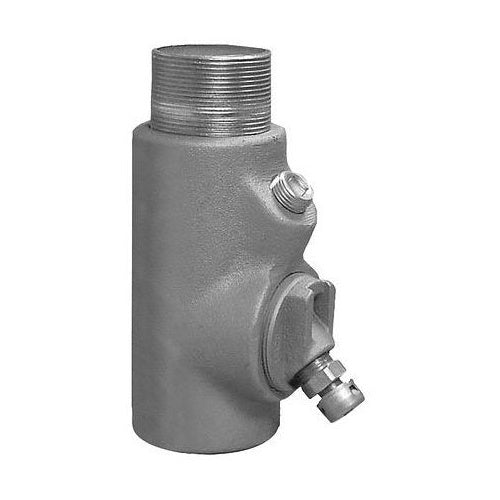

Catalog Description: UNILETS EYDM SERIES 25 PCT FILL VERTICAL CONDUIT DRAIN SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 3/4 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED MNPT X TAPERED FNPT, TURNING RADIUS: 1.94 IN, LENGTH
Category: Aluminum Sealing Bodies
Full Technical Description: Drain Type; Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/4 Inch Trade Size; Vertical Mounting Position; 1.91 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 3.69 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYDM Model
