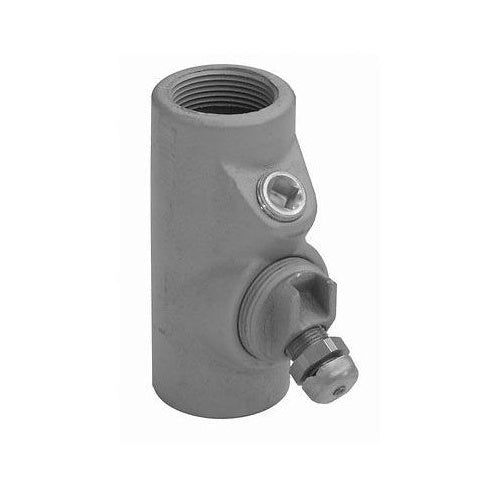

Appleton EYM100 1" Malleable Conduit Seal

Overview

Appleton EYM100 1" Malleable Conduit Seal

Product Specifications

• UPC: 78138113539
• Enclosure: Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL, UL 886, CSA, CSA C22.2
• Additional Information: REMOVABLE MALE NIPPLE
• Catalog Number: EYM100
• Brand Name: Unilets[R]
• Model: EYM
• Turning Radius: 1.38 Inch
• Trade Size: 1 Inch
• Connection Type: Male/Female Threaded
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Mounting Position: Vertical/Horizontal
• Catalog Description: UNILETS EY SERIES 25 PCT FILL VERTICAL AND HORIZONTAL CONDUIT SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 1 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: FEMALE THREADED
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1 Inch Trade Size; Vertical/Horizontal Mounting Position; 1.38 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 5.42 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYM Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381135399
• SKU Name: app eym100
