Class I Div 1 And 2 Group A/C/D, Class Ii Div 1 And 2 Group E/F/G, Class Iii: Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III
Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling within Conduit System

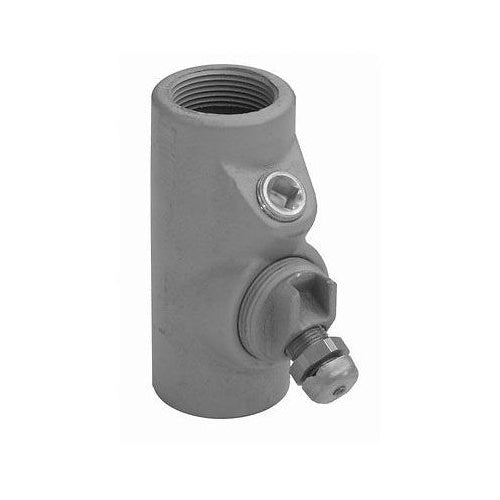

Catalog Number: EYM100-AL
Brand Name: Unilet[R]
Model: Type EYM
Turning Radius: 1.38 Inch
Trade Size: 1 Inch
Connection Type: Male, Female
Material: Almag 35 Aluminum
Mounting Position: Horizontal/Vertical
Catalog Description: UNILETS EY SERIES 25 PCT FILL VERTICAL AND HORIZONTAL CONDUIT SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 1 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: FEMALE THREADED X MALE THREADED, TURNING RADIUS: 1.38 I
Category: Aluminum Sealing Bodies
Full Technical Description: Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1 Inch Trade Size; Vertical/Horizontal Mounting Position; 1.38 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 5.42 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYM Model
