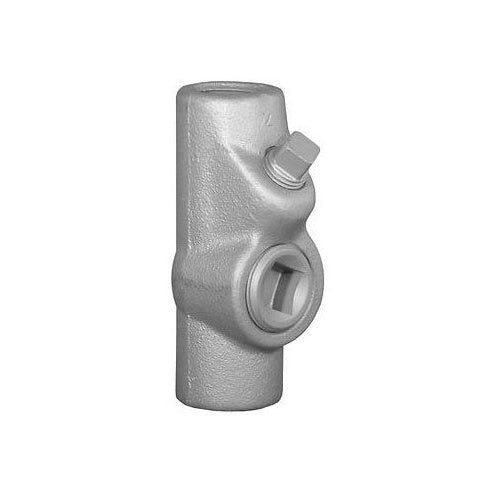

Appleton EYS11 1/2" Malleable Female Conduit Seal

Overview

Appleton EYS11 1/2" Malleable Female Conduit Seal

Product Specifications

• UPC: 78138162099
• Mounting Position: Horizontal/Vertical
• Enclosure: Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Additional Information: Overall Dimension 3.69 Inch L x 1.25 Inch W; Application Sealing Vertical Conduit, Prevent Pressure Piling within Conduit System
• Catalog Number: EYS11
• Brand Name: Unilet[R]
• Model: Type EYS
• Type: Hub, Drain
• Turning Radius: 1.06 Inch
• Trade Size: 1/2 Inch
• Connection Type: Female, Female
• Material: Grayloy Iron
• Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL AND HORIZONTAL SEALING FITTING, SIZE: 1/2 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED FNPT, TURNING RADIUS: 1.
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1/2 Inch Trade Size; Vertical/Horizontal Mounting Position; 1.16 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 3.69 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381620994
• SKU Name: app eys11
