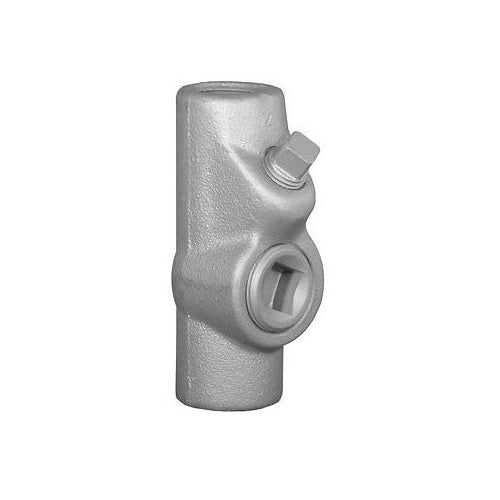

Appleton EYS116 1/2"Female/Male Conduit Seal (Removable Male)

Overview

Appleton EYS116 1/2"Female/Male Conduit Seal (Removable Male)

Product Specifications

• UPC: 78138162114
• Approval: UL, CSA
• Additional Information: Overall Dimension 3.69 Inch Length x 1.25 Inch Width; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC
• Catalog Number: EYS116
• Model: EYS
• Turning Radius: 1.16 Inch
• Trade Size: 1/2 Inch
• Connection Type: Male/Female
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Grayloy Iron
• Mounting Position: Horizontal/Vertical
• Enclosure: Class I Group A B C D, Class II Group E F G, Class III
• Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL AND HORIZONTAL SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 1/2 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED M
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1/2 Inch Trade Size; Vertical/Horizontal Mounting Position; 1.16 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 3.69 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381621144
• SKU Name: app eys116
