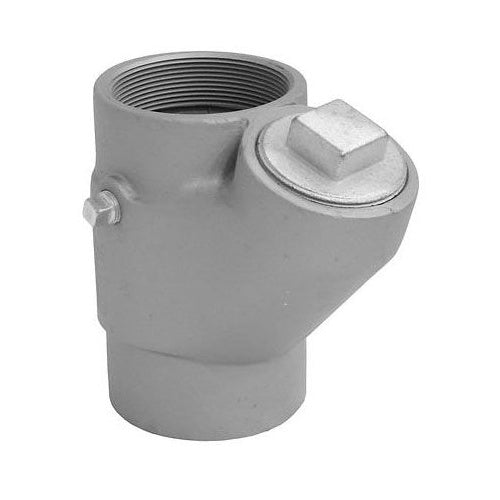

Appleton EYS4 1-1/4" Malleable Conduit Seal

Overview

Appleton EYS4 1-1/4" Malleable Conduit Seal

Product Specifications

• UPC: 78138162103
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location
• Catalog Number: EYS4
• Brand Name: Unilet[R]
• Model: EYS
• Turning Radius: 1.75 Inch
• Trade Size: 1-1/4 Inch
• Connection Type: Female, Female
• Material: Epoxy Powder Coated Dichromate Zinc Electroplated Grayloy Iron
• Mounting Position: Horizontal/Vertical
• Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL AND HORIZONTAL SEALING FITTING, SIZE: 1-1/4 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED FNPT, TURNING RADIUS: 1
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1-1/4 Inch Trade Size; Vertical/Horizontal Mounting Position; 1.75 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 5.06 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381621038
• SKU Name: app eys4
