Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
Approval: UL
Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location

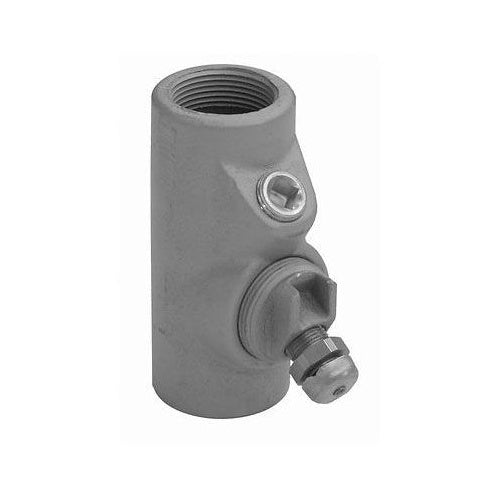

Catalog Number: EYSEF125
Brand Name: Unilet[R]
Model: EYSEF
Turning Radius: 2.06 Inch
Trade Size: 1-1/4 Inch
Connection Type: Female, Female
Material: Malleable Iron
Mounting Position: Horizontal/Vertical
Catalog Description: UNILETS EY SERIES 40 PCT EXPANDED FILL VERTICAL AND HORIZONTAL CONDUIT SEALING FITTING, SIZE: 1-1/4 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: FEMALE THREADED, TURNI
Category: Steel Sealing Bodies
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1-1/4 Inch Trade Size; Vertical/Horizontal Mounting Position; 2.06 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 5.5 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYSEF Model
