Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
Approval: UL
Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location

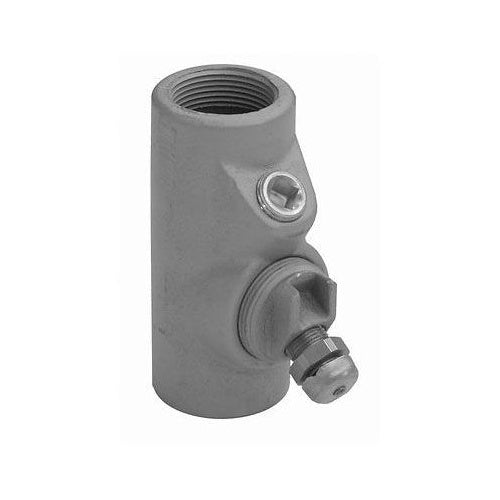

Catalog Number: EYSEF350
Brand Name: Unilet[R]
Model: EYSEF
Turning Radius: 3.59 Inch
Trade Size: 3-1/2 Inch
Connection Type: Female, Female
Material: Malleable Iron
Mounting Position: Horizontal/Vertical
Catalog Description: EXPLOSIONPROOF RIGID/IMC CONDUIT SEAL, TURNING RADIUS 3.59 INCH, TRADE SIZE 3-1/2 INCH, CONNECTION TYPE FEMALE, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, MOUNTING POSITION HORIZONTAL/VERTICAL, ENCLOSURE CLASS I DIV 1 AND 2 GROUP A B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, APPROVAL UL 886/E10444, CSA C22.2, SIZE 9.75 INCH L X 5.25 INCH W, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, RAINTIGHT, USED ON THREADED RIGID/IMC METAL CONDUIT
Category: Steel Sealing Bodies
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3-1/2 Inch Trade Size; Vertical/Horizontal Mounting Position; 3.59 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 9.75 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYSEF Model
