Class I Div 1 And 2 Group A/B/C/D, Class Ii Div 1 And 2 Group E/F/G, Class Iii: Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III
Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling within Conduit System
Catalog Number: EYSEF75AL
Brand Name: Unilet[R]
Model: Type EYSEF
Turning Radius: 1.38 Inch
Trade Size: 3/4 Inch
Connection Type: Female, Female
Material: Almag 35 Aluminum
Mounting Position: Horizontal/Vertical

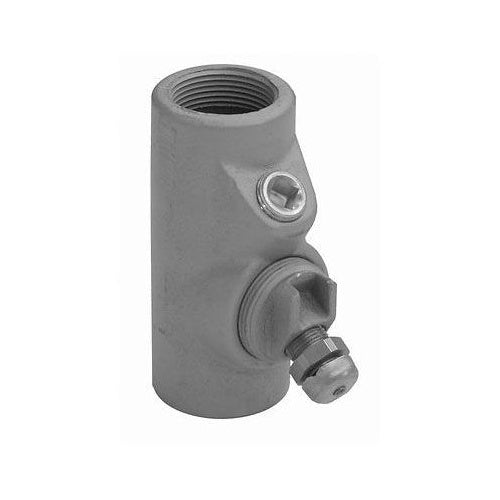

Catalog Description: UNILETS EY SERIES 40 PCT EXPANDED FILL VERTICAL AND HORIZONTAL CONDUIT SEALING FITTING, SIZE: 3/4 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: FEMALE THREADED, TURNING RADIUS: 1.38 IN, LENGTH: 4.31 IN, WIDTH: 1-3/4 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, GROUPS A, B, C, D, CLASS II, GROUPS E, F, G, AND CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
Category: Aluminum Sealing Bodies
Full Technical Description: Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/4 Inch Trade Size; Vertical/Horizontal Mounting Position; 1.38 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 4.31 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYSEF Model
