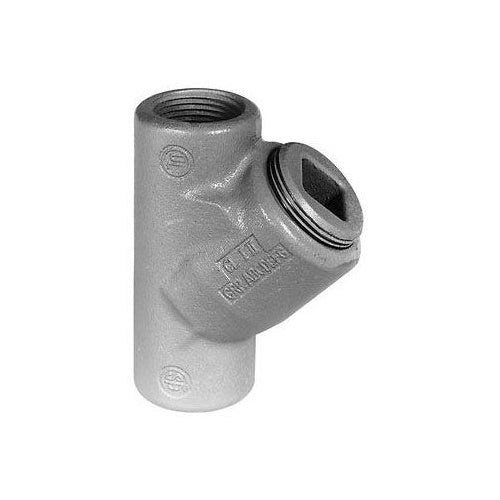

Appleton EYSF125 1-1/4" Malleable Conduit Seal

Overview

Appleton EYSF125 1-1/4" Malleable Conduit Seal

Product Specifications

• UPC: 78138133075
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location
• Catalog Number: EYSF125
• Brand Name: Unilet[R]
• Model: EYSF
• Turning Radius: 2.94 Inch
• Trade Size: 1-1/4 Inch
• Connection Type: Female
• Material: Malleable Iron
• Mounting Position: Vertical
• Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL CONDUIT SEALING FITTING, SIZE: 1-1/4 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED FNPT, TURNING RADIUS: 2.94 IN, LENGTH:
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1-1/4 Inch Trade Size; Vertical Mounting Position; 2.94 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 5.06 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381330756
• SKU Name: app eysf125
