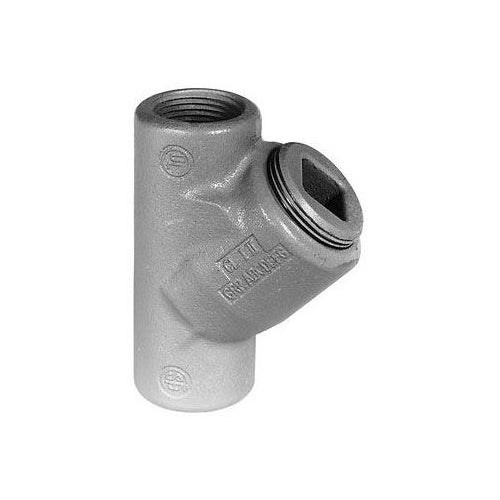

Appleton EYSF200 2" Explosion-Proof Sealing Fitting

Overview

Appleton EYSF200 2" Explosion-Proof Sealing Fitting

Product Specifications

• UPC: 78138133096
• Enclosure: Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 886, CSA C22.2
• Additional Information: Overall Dimension 6.25 Inch L x 2.94 Inch W
• Catalog Number: EYSF200
• Brand Name: Unilet[R]
• Model: EYSF
• Turning Radius: 4.13 Inch
• Trade Size: 2 Inch
• Connection Type: Female
• Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron
• Mounting Position: Vertical
• Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL CONDUIT SEALING FITTING, SIZE: 2 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED FNPT, TURNING RADIUS: 4.13 IN, LENGTH: 6-1
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 2 Inch Trade Size; Vertical Mounting Position; 4.13 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 6.25 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381330961
• SKU Name: app eysf200

Resources

• Manufacturer Spec Sheet
