Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
Approval: UL
Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location
Catalog Number: EYSF50-AL
Brand Name: Unilet[R]
Model: EYSF
Turning Radius: 1.81 Inch
Trade Size: 1/2 Inch
Connection Type: Female, Female
Material: Epoxy Powder Coated Almag 35 Aluminum
Mounting Position: Vertical

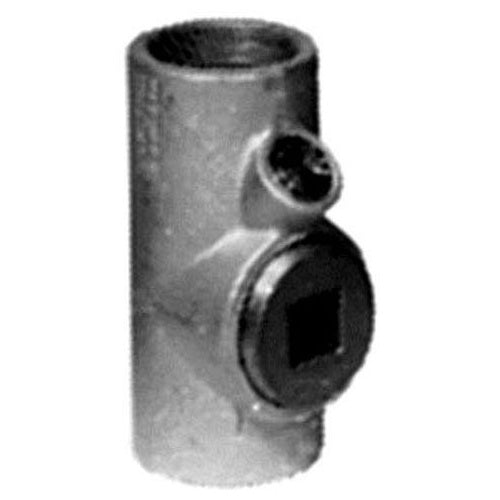

Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL CONDUIT SEALING FITTING, SIZE: 1/2 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FNPT, TURNING RADIUS: 1.81 IN, LENGTH: 3-1/4 IN, WIDTH: 1.13 IN, STANDARD: UL 886
Category: Aluminum Sealing Bodies
Full Technical Description: Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1/2 Inch Trade Size; Vertical Mounting Position; 1.81 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 3.25 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
