Enclosure: CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III
Approval: UL
Additional Information: REMOVABLE MALE NIPPLE
Catalog Number: EYSM100-AL
Brand Name: UNILETS.
Model: EYS
Turning Radius: 2.38 INCH
Trade Size: 1 INCH
Connection Type: MALE, FEMALE
Material: EPOXY POWDER COATED ALMAG 35 ALUMINUM
Mounting Position: VERTICAL

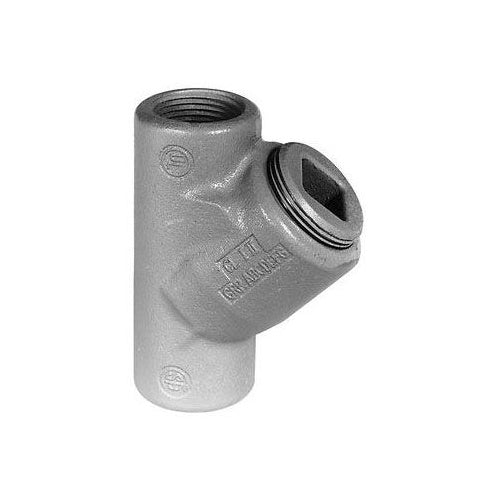

Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL CONDUIT SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 1 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED MNPT X TAPERED FNPT, TURNING RADIUS: 2.38 IN, LENGTH: 4-1/4
Category: Aluminum Sealing Bodies
Full Technical Description: Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1 Inch Trade Size; Vertical Mounting Position; 2.38 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 4.25 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
