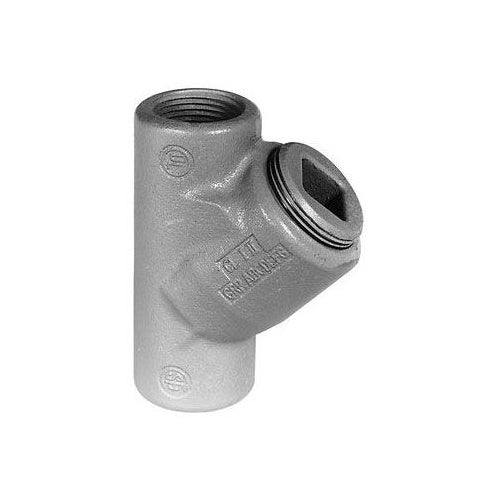

Appleton EYSM75 3/4" Malleable Conduit Seal

Appleton EYSM75 3/4" Malleable Conduit Seal

33 in stock

Regular price $28.17 USD
Regular price Sale price $28.17 USD
Sale Sold out
Quantity

Overview

Appleton EYSM75 3/4" Malleable Conduit Seal

Product Specifications

  • UPC: 78138133145
  • Enclosure: Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III
  • Approval: UL
  • Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location; Includes Removable Male Nipple
  • Catalog Number: EYSM75
  • Brand Name: Unilet[R]
  • Model: EYSM
  • Turning Radius: 2.25 Inch
  • Trade Size: 3/4 Inch
  • Connection Type: Male, Female
  • Material: Epoxy Powder Coated Dichromate Zinc Electroplated Malleable Iron
  • Mounting Position: Vertical
  • Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL CONDUIT SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 3/4 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED MNPT X TAPERED FNPT
  • Category: Steel Sealing Bodies
  • Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/4 Inch Trade Size; Vertical Mounting Position; 2.25 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 3.63 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
  • Manufacturer: Appleton Electric
  • Manufacturer Brand: Appleton Electric
  • Sub Category: Explosionproof Conduit Seal
  • Unspsc: 39121311
  • UPC 12 Digit: 781381331456
  • SKU Name: app eysm75
