Additional Information: Constructional Feature Corrosion Resistant; Used On Rigid/IMC Metal Conduit; Application Commercial and Industrial; Applicable Standard NEMA FB-1; Includes Ground Screw
Catalog Number: FD-1-100-A
Brand Name: UNILETS[R]
Model: FD
Height: 6.31 Inch
Width: 2.81 Inch
Depth: 2.69 Inch
Capacity: 25 Cubic Inch
Number Of Gangs: 1

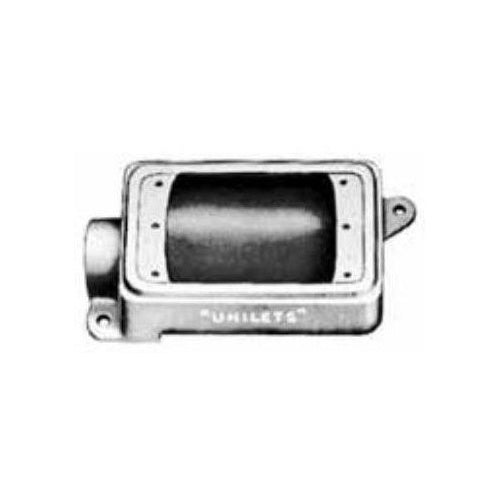

Catalog Description: UNILETS FD DEEP DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 1, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 1 IN, CABLE ENTRY: (1) 1 IN HUB, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.56 IN, WIDTH: 2.81 IN, DEPTH: 2.69 IN, FINISH: EPOXY POWDER COAT, STANDARD: UL 514 A, UL FILE NUMBER E2527, CSA C22.2 NO. 18.1, CSA 001472 CERTIFIED, NEMA FB-1, FOR USE WITH THREADED METAL CONDUIT AND IMC
Category: Aluminum Fs&Fd Type Boxes & Covers
Full Technical Description: Epoxy Powder Coated Aluminum Material; 2.81 Inch; 6.31 Inch; 2.69 Inch; Deep Shape; 1 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL 514A Approval; 25 Cubic Inch Capacity; (2) Lug Mounting Hardware; FD Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FD Model
