Additional Information: Constructional Feature Corrosion Resistant, Weatherproof, Rain Tight, Dust Tight; Application Accommodate Wiring Device, Serve as Pull Box for Conductor, Indoor/Outdoor; Applicable Standard FB-1

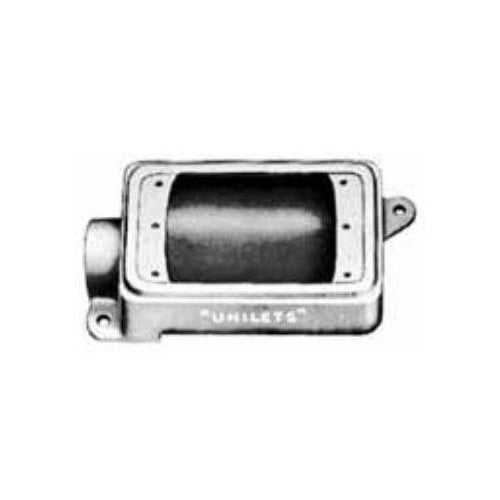

Catalog Number: FD-1-75L-A
Brand Name: Appleton
Model: FD
Height: 5.88 Inch
Width: 2.81 Inch
Depth: 2.69 Inch
Capacity: 25 Cubic Inch
Number Of Gangs: 1
Catalog Description: UNILETS FD DEEP DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 1, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 3/4 IN, CABLE ENTRY: (1) 3/4 IN HUB, MOUNTING: (2) 5/16 DIAMETER LUGS, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS:
Category: Aluminum Fs&Fd Type Boxes & Covers
Full Technical Description: Epoxy Powder Coated Aluminum Material; 2.81 Inch; 5.88 Inch; 2.69 Inch; Deep Shape; 3/4 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL 514A Approval; 25 Cubic Inch Capacity; (2) Lug Mounting Hardware; FD Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FD Model
