Additional Information: APPLICABLE STANDARD FEDERAL SPECIFICATION W-C-586B; CONDUIT TYPE IMC, THREADED RIGID; COVER TYPE SINGLE GANG; ENVIRONMENTAL CONDITIONS CORROSION RESISTANT; HUB TYPE BRAZED THREADED; OPENING TYPE (1/2 INCH TO 1-1/2 INCH) BOTTOM AND SIDE
Catalog Number: FDB-2L
Brand Name: Unilet[R]
Height: 5 Inch
Width: 6.94 Inch
Depth: 2.69 Inch
Capacity: 65 Cubic Inch
Number Of Gangs: 2
Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron

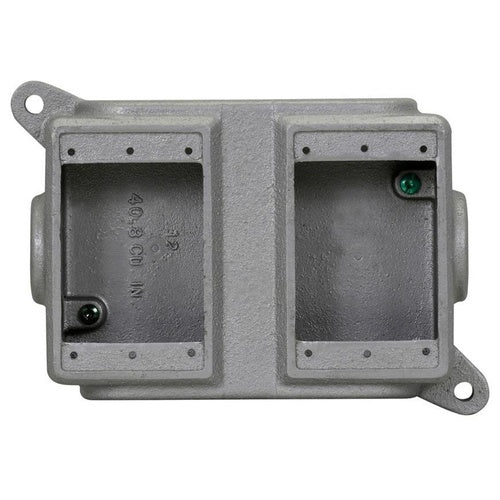

Catalog Description: UNILETS FDB DEEP DEPTH 2-GANG CAST DEVICE BOX, MATERIAL: MALLEABLE IRON, MOUNTING: LUGS, KNOCKOUTS: NO, HEIGHT: 5 IN, WIDTH: 6-1/2 IN, DEPTH: 2.69 IN, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), STANDARD: UL 51
Category: Steel Fs & Fd Type Boxes & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 6.94 Inch; 5 Inch; 2.69 Inch; Deep Shape; 2 Gang(S); UL 514A Approval; 65 Cubic Inch Capacity; (2) Lug Mounting Hardware; Fdb Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FDB Model
