Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
Shape: Deep
Configuration Type: FDB
Mounting Hardware: (4) Lugs
Approval: UL 514A
Additional Information: Application Accommodate Wiring Devices, Serve as Pull Box for Conductors, Indoor/Outdoor
Catalog Number: FDB-3GL
Brand Name: Unilet[R]
Model: FDB
Height: 5 Inch
Width: 6.88 Inch
Depth: 2.69 Inch
Capacity: 62 Cu Inch
Number Of Gangs: 3

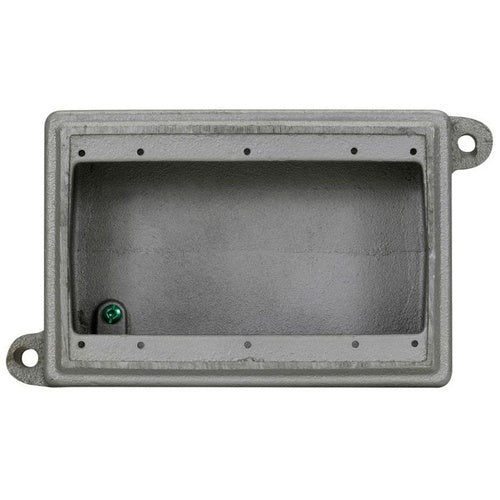

Catalog Description: UNILETS FDB DEEP DEPTH 3-GANG CAST DEVICE BOX, MATERIAL: MALLEABLE IRON, MOUNTING: LUGS, KNOCKOUTS: NO, HEIGHT: 5 IN, WIDTH: 6.44 IN, DEPTH: 2.69 IN, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), STANDARD: UL 514 A, UL FILE NUMBER E2527, NEMA FB-1, FOR USE WITH THREADED METAL CONDUIT AND IMC
Category: Steel Fs & Fd Type Boxes & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 6.88 Inch; 5 Inch; 2.69 Inch; Deep Shape; 3 Gang(S); UL 514A Approval; 62 Cubic Inch Capacity; (4) Lug Mounting Hardware; Fdb Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FDB Model
