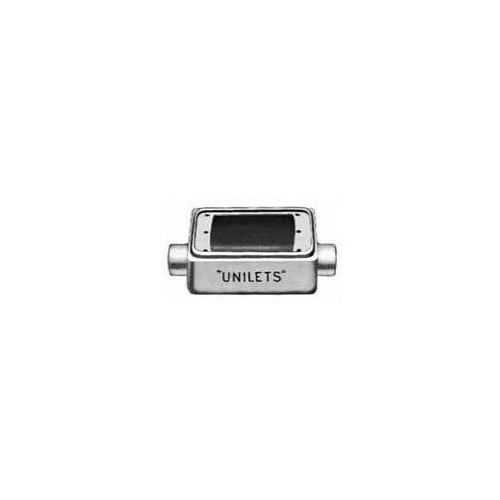

Appleton FDC150 1-Gang Malleable FDC Box

Overview

Appleton FDC150 1-Gang Malleable FDC Box

Product Specifications

• UPC: 78138133535
• Number Of Hubs: 2
• Hub Location: (2) Ends
• Hub Size: 1/2 Inch
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Shape: Deep
• Configuration Type: FDC
• Approval: UL, CSA
• Additional Information: Includes Internal Ground Screw; Application Commercial and Industrial; Applicable Standard NEMA FB-1
• Catalog Number: FDC150
• Brand Name: Unilets[R]
• Model: FDC
• Height: 5.88 Inch
• Width: 2.81 Inch
• Depth: 2.69 Inch
• Capacity: 25 Cubic Inch
• Number Of Gangs: 1
• Catalog Description: UNILETS FDC DEEP DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 2, MATERIAL: MALLEABLE IRON, SIZE: 1/2 IN, CABLE ENTRY: (2) 1/2 IN HUB, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.56 IN, WIDTH: 2.81 IN, DEPTH: 2.69 IN, FINISH: TRIP
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2.81 Inch; 5.88 Inch; 2.69 Inch; Deep Shape; 1/2 Inch Hub Size; 2 Hub(S); 1 Gang(S); UL 514A Approval; 25 Cubic Inch Capacity; Not Included Mounting Hardware; Fdc Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381335355
• SKU Name: app fdc150
