Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
Shape: Deep
Configuration Type: FDCC
Approval: UL, CSA
Additional Information: Includes Internal Ground Screw; Application Commercial and Industrial; Applicable Standard NEMA FB-1
Catalog Number: FDCC175
Brand Name: Unilets[R]
Model: FDCC
Height: 5.88 Inch
Width: 2.81 Inch
Depth: 2.69 Inch
Capacity: 25 Cubic Inch
Number Of Gangs: 1

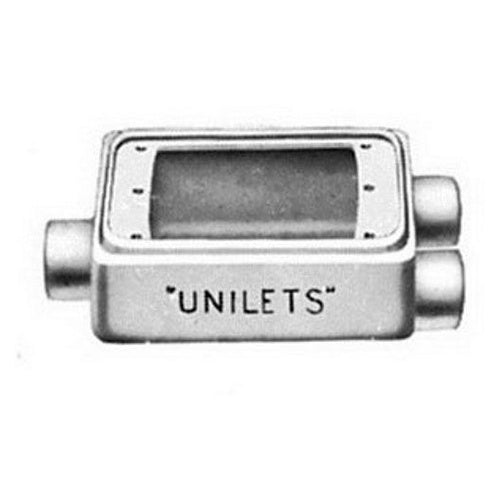

Catalog Description: UNILETS FDCC DEEP DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 3, MATERIAL: MALLEABLE IRON, SIZE: 3/4 IN, CABLE ENTRY: (3) 3/4 IN HUB, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.56 IN, WIDTH: 2.81 IN, DEPTH: 2.69 IN, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), STANDARD: UL 514 A, UL FILE NUMBER E2527, CSA C22.2 NO. 18.1, CSA 001472 CERTIFIED, NEMA FB-1, FOR USE WITH THREADED METAL CONDUIT AND IMC
Category: Steel Fs & Fd Type Boxes & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2.81 Inch; 5.88 Inch; 2.69 Inch; Deep Shape; 3/4 Inch Hub Size; 3 Hub(S); 1 Gang(S); UL 514A Approval; 25 Cubic Inch Capacity; Not Included Mounting Hardware; Fdcc Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FD Model
