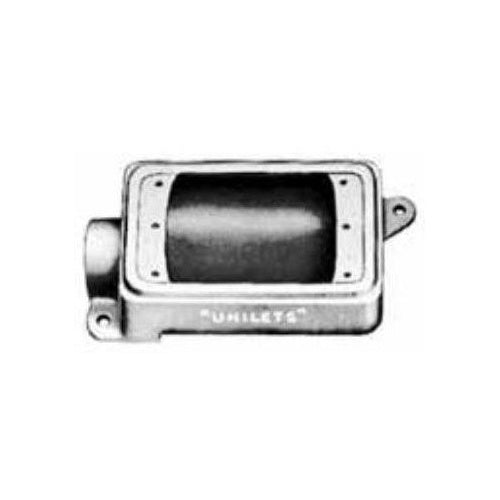

Appleton FS-1-75L 1-Gang Malleable FS Box w/Lugs

Overview

Appleton FS-1-75L 1-Gang Malleable FS Box w/Lugs

Product Specifications

• UPC: 78138134110
• Number Of Hubs: 1
• Hub Location: End
• Hub Size: 3/4 Inch
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Shape: Shallow
• Configuration Type: FS
• Mounting Hardware: (2) Lug
• Approval: UL 514A
• Additional Information: Application Accommodate Wiring Device, Serve as Pull Box for Conductor, Indoor/Outdoor; Applicable Standard NEMA FB-1
• Catalog Number: FS-1-75L
• Brand Name: Appleton
• Model: FS
• Height: 5.88 Inch
• Width: 2.81 Inch
• Depth: 2 Inch
• Capacity: 18 Cubic Inch
• Number Of Gangs: 1
• Catalog Description: UNILETS FS SHALLOW DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 1, MATERIAL: MALLEABLE IRON, SIZE: 3/4 IN, CABLE ENTRY: (1) 3/4 IN HUB, MOUNTING: (2) 5/16 DIAMETER LUGS, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, HEIGHT: 6.06 IN, WIDTH:
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2.81 Inch; 5.88 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL 514A Approval; 18 Cubic Inch Capacity; (2) Lug Mounting Hardware; FS Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FS Model
• Manufacturer: APPLETON ELECTRIC COMPANY
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381341103
• SKU Name: app fs175l
