Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
Shape: Shallow
Configuration Type: FS
Approval: UL, CSA
Additional Information: Includes Internal Ground Screw; Application Commercial and Industrial; Applicable Standard NEMA FB-1
Catalog Number: FS275
Brand Name: Unilets[R]
Model: FS
Height: 5.88 Inch
Width: 4.63 Inch
Depth: 2 Inch
Capacity: 32 Cubic Inch
Number Of Gangs: 1

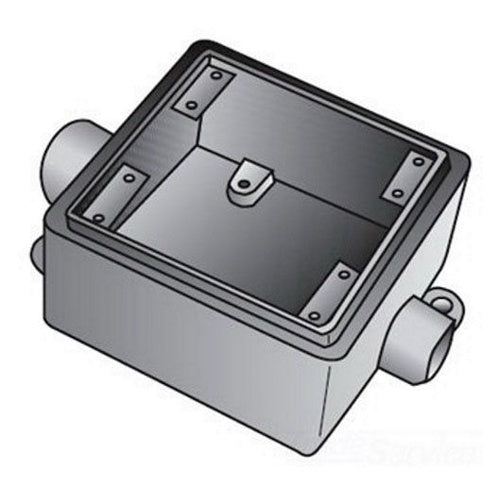

Catalog Description: UNILETS FS SHALLOW DEPTH 2-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 1, MATERIAL: MALLEABLE IRON, SIZE: 3/4 IN, CABLE ENTRY: (1) 3/4 IN HUB, CUBIC CAPACITY: 32 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.63 IN, WIDTH: 4.63 IN, DEPTH: 2 IN, FINISH: TRIPLE
Category: Steel Fs & Fd Type Boxes & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 4.63 Inch; 5.88 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 1 Hub(S); 2 Gang(S); UL 514A Approval; 32 Cubic Inch Capacity; Not Included Mounting Hardware; FS Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FS Model
