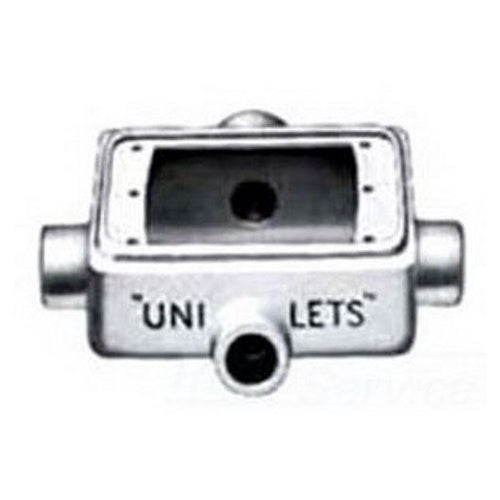

Appleton FSX150 1-Gang Malleable FS x Box

Overview

Appleton FSX150 1-Gang Malleable FS x Box

Product Specifications

• UPC: 78138135380
• Number Of Hubs: 4
• Hub Location: (1) Each Sides, (1) Each End
• Hub Size: 1/2 Inch
• Material: Zinc Electroplated/Dichromate/Epoxy Powder Coated Malleable Iron
• Shape: Shallow
• Configuration Type: FSX
• Mounting Hardware: Not Included
• Approval: UL 514A
• Additional Information: Application Indoor/Outdoor
• Catalog Number: FSX150
• Brand Name: Unilet[R]
• Model: FS
• Height: 5.88 Inch
• Width: 4.19 Inch
• Depth: 2 Inch
• Capacity: 18 Cu Inch
• Number Of Gangs: 1
• Catalog Description: UNILETS FSX SHALLOW DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 4, MATERIAL: MALLEABLE IRON, SIZE: 1/2 IN, CABLE ENTRY: (4) 1/2 IN HUB, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.56 IN, WIDTH: 2.81 IN, DEPTH: 2 IN, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), STANDARD: UL 514 A, UL FILE NUMBER E2527, CSA C22.2 NO. 18.1, CSA 001472 CERTIFIED, NEMA FB-1, FOR USE WITH THREADED METAL CONDUIT AND IMC
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2.81 Inch; 5.88 Inch; 2 Inch; Shallow Shape; 1/2 Inch Hub Size; 4 Hub(S); 1 Gang(S); UL 514A Approval; 18 Cubic Inch Capacity; Not Included Mounting Hardware; Fsx Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381353809
• SKU Name: app fsx150
