Additional Information: Finish Zinc Plated; Applicable Standard NEMA FB-1
Catalog Number: GIB-250L-4BC
Brand Name: Lay-In-Lug[TM]
Model: GIB-L-BC
Type: Threaded
Trade Size: 2-1/2 Inch
Wire Size: 14 AWG Solid to 4 AWG Standard
Lug Type: Lay-In, Bronze
Conductor Material: Copper

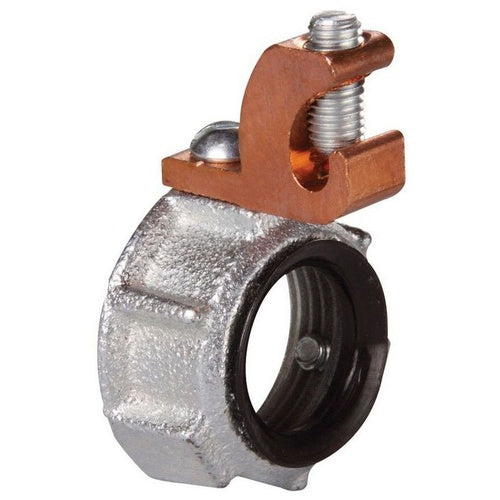

Catalog Description: GROUNDING BUSHING, TYPE THREADED, TRADE SIZE 2-1/2 INCH, WIRE SIZE 14 AWG SOLID TO 4 AWG STANDARD, LUG TYPE LAY-IN, BRONZE, CONDUCTOR MATERIAL COPPER, THROAT TYPE INSULATED, DIAMETER 3.38 INCH, HEIGHT 0.88 INCH, MATERIAL ZINC PLATED MALLEABLE IRON BODY, ZINC PLATED STEEL CLAMPING SCREW/SET SCREW, APPROVAL UL 514B, CSA C22.2, USED ON THREADED RIGID METAL CONDUIT/IMC, USED WITH A LOCKNUT TO TERMINATE RIGID METAL CONDUIT/IMC CONDUIT TO A BOX OR ENCLOSURE
Category: Rigid Conduit Fittings - Aluminum
Full Technical Description: Threaded, Set Screw Type; Zinc Plated Malleable Iron (Body), Zinc Plated Steel (Clamping/Set Screw) Material; 0.88 Inch; Imc/Rigid Conduit Used on; 14 AWG Solid to 4 AWG Stranded Wire Size; Copper/Aluminum Conductor Material; UL 467/514B, CSA C22.2 Approval; 3.38 Inch Diameter; 2-1/2 Inch Trade Size; Insulated Throat Type; Bronze, Lay-in Lug Type; Turning Radius 2.25 Inch; Temperature Rating 302 Deg F; Includes Lug; Applicable Standard Nec/Cec; GIB-L Model
