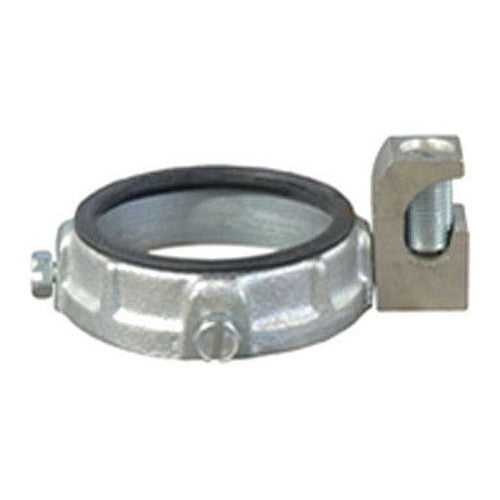

Appleton GIB-350LS-4AC 3-1/2" Grounding Bushing

Overview

Appleton GIB-350LS-4AC 3-1/2" Grounding Bushing

Product Specifications

• UPC: 78138109151
• Throat Type: Insulated
• Diameter: 4.5 Inch
• Height: 1 Inch
• Material: Malleable Iron (Body), Steel (Clamping Screw/Set Screw)
• Approval: UL 467, CSA C22.2
• Used On: Rigid Metal Conduit/IMC
• Additional Information: Finish Zinc Plated; Applicable Standard NEMA FB-1; Temperature Rating 150 Deg C
• Catalog Number: GIB-350LS-4AC
• Brand Name: Lay-In-Lug[TM]
• Model: GIB-LS-AC
• Type: Threadless, Set Screw
• Trade Size: 3-1/2 Inch
• Wire Size: 14 AWG Solid to 4 AWG Standard
• Lug Type: Lay-In, Aluminum
• Conductor Material: Copper/Aluminum
• Catalog Description: INSULATED GROUNDING BUSHING WITH ALUMINUM LAY-IN-LUG, SIZE: 3-1/2 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATED BODY, TIN PLATED LUG, TEMPERATURE RATING: 150 DEG C, DIMENSIONS: 1 IN HEIGHT X 4.5 IN DIAMETER, CABLE SIZE: 14 AWG SOLID - 4 AWG STRANDED, TURNING RADIUS: 2.88 IN, STANDARD: UL 467, E6581, CSA C22.2 NO. 41, NEMA FB-1, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Threadless, Set Screw Type; Zinc Plated Malleable Iron (Body), Zinc Plated Steel (Clamping/Set Screw) Material; 1 Inch; Imc/Rigid Conduit Used on; 14 AWG Solid to 4 AWG Stranded Wire Size; Copper/Aluminum Conductor Material; UL 467/514B, CSA C22.2 Approval; 4.5 Inch Diameter; 3-1/2 Inch Trade Size; Insulated Throat Type; Tin Plated Aluminum, Lay-in Lug Type; Turning Radius 2.88 Inch; Temperature Rating 302 Deg F; Includes Lug; Applicable Standard Nec/Cec; GIB-LS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381091510
• SKU Name: app gib350ls4ac
