Material: Zinc Plated Malleable Iron Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw
Approval: UL 467, CSA C22.2
Used On: Threadless Rigid Metal Conduit/IMC
Additional Information: Applicable Standard NEMA FB-1; Temperature Rating 150 Deg C
Catalog Number: GIB-50LS-4AC
Brand Name: Lay-In-Lug[TM]
Model: GIB-LS-AC
Type: Threadless Set Screw
Trade Size: 1/2 Inch
Wire Size: 14 AWG Solid to 4 AWG Stranded
Lug Type: Lay-In, Aluminum
Conductor Material: Copper/Aluminum

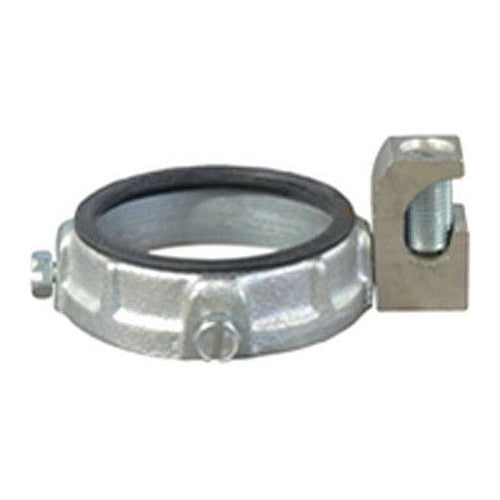

Catalog Description: INSULATED GROUNDING BUSHING WITH ALUMINUM LAY-IN-LUG, SIZE: 1/2 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATED BODY, TIN PLATED LUG, TEMPERATURE RATING: 150 DEG C, DIMENSIONS: 0.44 IN HEIGHT X 1.19 IN DIAMETER, CABLE SIZE: 14 AWG SOLID - 4 AWG STRANDED, TURNING RADIUS: 1.19 IN, STANDARD: UL 467, E6581, CSA C22.2 NO. 41, NEMA FB-1, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
Category: Rigid Conduit Fittings - Aluminum
Full Technical Description: Threadless, Set Screw Type; Zinc Plated Malleable Iron (Body), Zinc Plated Steel (Clamping/Set Screw) Material; 0.44 Inch; Imc/Rigid Conduit Used on; 14 AWG Solid to 4 AWG Stranded Wire Size; Copper/Aluminum Conductor Material; UL 467/514B, CSA C22.2 Approval; 1.19 Inch Diameter; 1/2 Inch Trade Size; Insulated Throat Type; Tin Plated Aluminum, Lay-in Lug Type; Turning Radius 1.19 Inch; Temperature Rating 302 Deg F; Includes Lug; Applicable Standard Nec/Cec; GIB-LS Model
