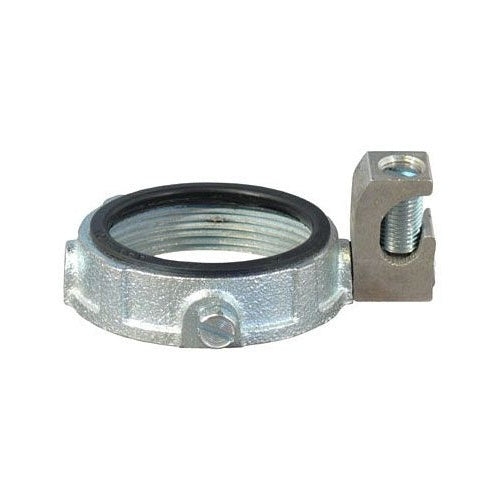

Appleton GIB-600L-4AC 6" Malleable Grounding Bushing

Overview

Appleton GIB-600L-4AC 6" Malleable Grounding Bushing

Product Specifications

• UPC: 78138109133
• Throat Type: Insulated
• Diameter: 7.25 Inch
• Height: 1.31 Inch
• Material: Malleable Iron
• Approval: UL 514B, CSA C22.2
• Used On: Rigid Metal Conduit/IMC
• Additional Information: Finish Zinc Plated; Applicable Standard NEMA FB-1
• Catalog Number: GIB-600L-4AC
• Brand Name: Lay-In-Lug[TM]
• Model: GIB-L-AC
• Type: Threaded
• Trade Size: 6 Inch
• Wire Size: 14 AWG Solid to 4 AWG Standard
• Lug Type: Lay-In, Aluminum
• Conductor Material: Copper/Aluminum
• Catalog Description: GROUNDING BUSHING, TYPE THREADED, TRADE SIZE 6 INCH, WIRE SIZE 14 AWG SOLID TO 4 AWG STANDARD, LUG TYPE LAY-IN, ALUMINUM, CONDUCTOR MATERIAL COPPER/ALUMINUM, THROAT TYPE INSULATED, DIAMETER 7.25 INCH, HEIGHT 1.31 INCH, MATERIAL ZINC PLATED MALLEABLE IRON BODY, ZINC PLATED STEEL CLAMPING SCREW/SET SCREW, APPROVAL UL 514B, CSA C22.2, USED ON THREADED RIGID METAL CONDUIT/IMC, USED WITH A LOCKNUT TO TERMINATE RIGID METAL CONDUIT/IMC CONDUIT TO A BOX OR ENCLOSURE
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Threaded, Set Screw Type; Zinc Plated Malleable Iron (Body), Zinc Plated Steel (Clamping/Set Screw) Material; 1.31 Inch; Imc/Rigid Conduit Used on; 14 AWG Solid to 4 AWG Stranded Wire Size; Copper/Aluminum Conductor Material; UL 467/514B, CSA C22.2 Approval; 7.25 Inch Diameter; 6 Inch Trade Size; Insulated Throat Type; Tin Plated Aluminum, Lay-in Lug Type; Turning Radius 4.25 Inch; Temperature Rating 302 Deg F; Includes Lug; Applicable Standard Nec/Cec; GIB-L Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381091336
• SKU Name: app gib600l4ac
