Additional Information: Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
Catalog Number: GRC200-A
Brand Name: Unilet[R]
Model: GRC
Style: E
Hub Size: 2 Inch
Hub Type: External
Number Of Hubs: 2
Hub Location: Feed Through

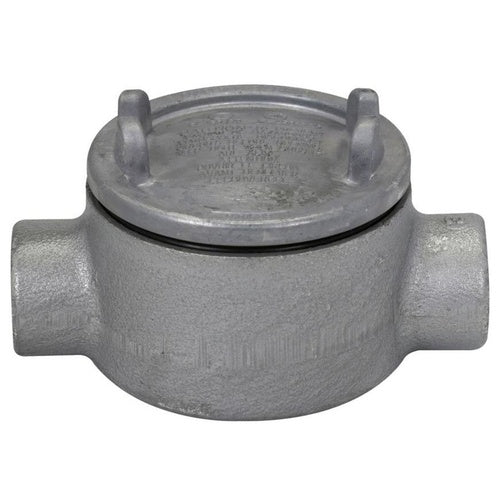

Catalog Description: UNILETS OUTLET BOX, NUMBER OF OUTLET: 2, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 2 IN, CABLE ENTRY: (2) 2 IN GRC HUB, CUBIC CAPACITY: 76 CU-IN, KNOCKOUTS: NO, COVER OPENING: 4.88 IN, FORM NUMBER: 3, HEIGHT: 5-3/4 IN,
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum Material; Round Shape; 2 Inch Hub Size; 2 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class 1 Zone 1 and 2 Group Iia Iib, Class III, NEMA 3/4/4X Enclosure; Externally Threaded Cover Type; 76 Cubic Inch Capacity; C Style; Feed-Through Hub Location; External Hub Type; 4.88 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Ambient Temperature Rating -25 to 40 Deg C; Includes Aluminum Cover, Internal Ground Screw and O-ring; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GR Model
