Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4
Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
Mounting: Flanged
Approval: UL, CSA C22.2
Additional Information: Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
Catalog Number: GRFC75
Brand Name: Unilet[R]
Model: GRFC
Style: E
Hub Size: 3/4 Inch
Hub Type: External
Number Of Hubs: 2
Hub Location: Feed Through

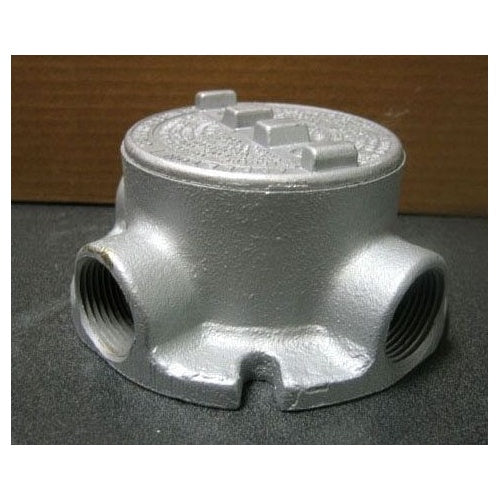

Catalog Description: UNILETS FLANGED OUTLET BOX, NUMBER OF OUTLET: 2, MATERIAL: MALLEABLE IRON, SIZE: 3/4 IN, CABLE ENTRY: (2) 3/4 IN GRFC HUB, CUBIC CAPACITY: 18 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3.38 IN, FORM NUMBER: 1, HEIGHT: 3-3/4 IN, WIDTH: 3-3/4 IN,
Category: Miscellaneous Conduit Bodies
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Round Shape; 3/4 Inch Hub Size; 2 Hub(S); UL 886, CSA C22.2 Approval; Flanged Mounting; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class 1 Zone 1 and 2 Group Iia Iib, Class III Enclosure; Externally Threaded Cover Type; 18 Cubic Inch Capacity; C Style; Feed-Through Hub Location; External Hub Type; 3.38 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Ambient Temperature Rating -25 to 40 Deg C; Includes Internal Ground Screw and O-ring; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GRF Model
