Additional Information: Constructional Feature Explosionproof, Dust-Ignitionproof, Rain Tight; Used On Threaded Metal Conduit; Includes Internal Ground Screw; Application Indoor/Outdoor
Catalog Number: GRJT75
Brand Name: UNILETS[R]
Model: GRJT
Style: JT
Hub Size: 3/4 Inch
Hub Type: External
Number Of Hubs: 3
Hub Location: Side

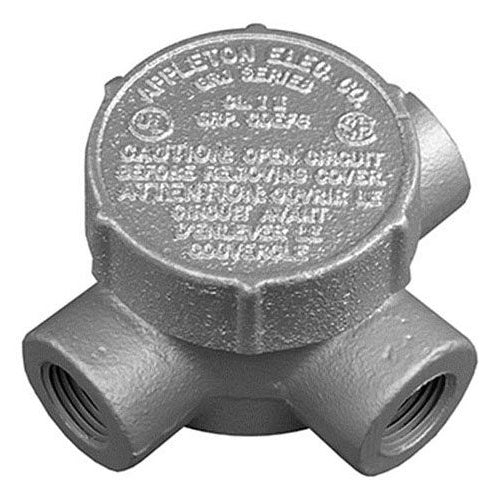

Catalog Description: UNILETS OUTLET BOX, NUMBER OF OUTLET: 3, MATERIAL: MALLEABLE IRON, SIZE: 3/4 IN, CABLE ENTRY: (3) 3/4 IN GRJT HUB, CUBIC CAPACITY: 7.3 CU-IN, KNOCKOUTS: NO, COVER OPENING: 2.13 IN, HEIGHT: 2.88 IN, WIDTH: 2.88 IN, DEPTH: 2.06 IN, FINISH: T
Category: Miscellaneous Conduit Bodies
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Round Shape; 3/4 Inch Hub Size; 3 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Internally Threaded Cover Type; 7.3 Cubic Inch Capacity; T Style; (3) Side Hub Location; External Hub Type; 2.13 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Includes Cover, Internal Ground Screw and O-ring; Application General Purpose Wiring, Indoor and Outdoor, Pulling of Wire, Connect Conduit Length and Change Direction of Conduit Run, Provide Access For Maintenance; Applicable Standard Nec/Cec; GRJ Model
