Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4
Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
Approval: UL, CSA C22.2
Additional Information: Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
Catalog Number: GRLA50
Brand Name: Unilet[R]
Model: GRLA
Style: LA
Hub Size: 1/2 Inch
Hub Type: External
Number Of Hubs: 3
Hub Location: (2) Side, (1) Down

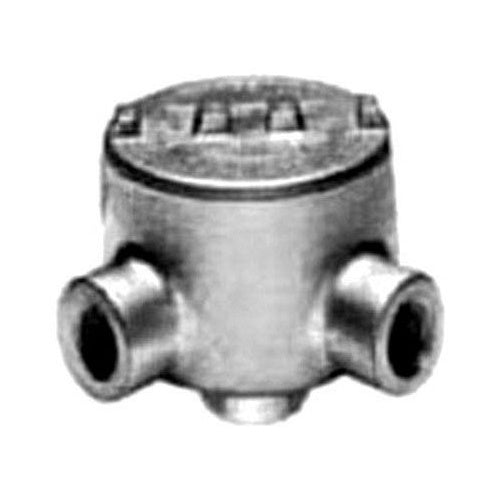

Catalog Description: UNILETS OUTLET BOX, NUMBER OF OUTLET: 3, MATERIAL: MALLEABLE IRON, SIZE: 1/2 IN, CABLE ENTRY: (3) 1/2 IN GRLA HUB, CUBIC CAPACITY: 18 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3.38 IN, FORM NUMBER: 1, HEIGHT: 3-3/4 IN, WIDTH: 3-3/4 IN, DEPTH: 2
Category: Miscellaneous Conduit Bodies
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Round Shape; 1/2 Inch Hub Size; 3 Hub(S); UL, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class 1 Zone 1 and 2 Group Iia Iib, Class III Enclosure; Externally Threaded Cover Type; 18 Cubic Inch Capacity; La Style; (2) Side, (1) Down Hub Location; External Hub Type; 3.38 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Ambient Temperature Rating -25 to 40 Deg C; Includes Aluminum Cover, Internal Ground Screw and O-ring; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GR Model
