Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
Approval: UL 886
Additional Information: Includes Union Hub; Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
Catalog Number: GRUSE75
Brand Name: Unilet[R]
Model: GRUSE
Hub Size: 3/4 Inch
Hub Type: External
Number Of Hubs: 3
Hub Location: (3) Side
Capacity: 19 Cu Inch

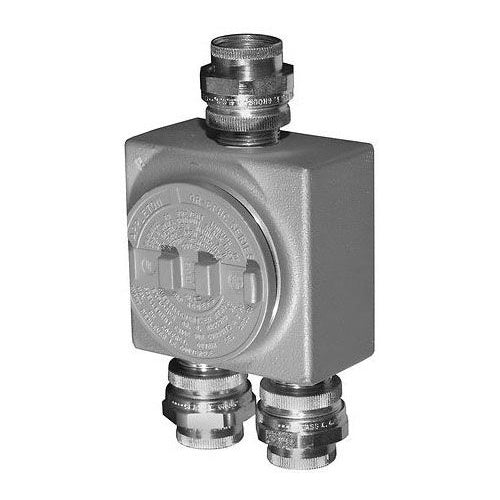

Catalog Description: UNILETS GRUSE OUTLET BOX WITH UNION HUBS, NUMBER OF OUTLET: 3, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 3/4 IN, CABLE ENTRY: (3) 3/4 IN UNION HUB, CUBIC CAPACITY: 19 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3-1/4 IN, WIDTH
Category: Miscellaneous Conduit Bodies
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Square Shape; 3/4 Inch Hub Size; 3 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Internally Threaded Cover Type; 19 Cubic Inch Capacity; (3) Side Hub Location; External Hub Type; 3.25 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Includes Cover, Internal Ground Screw, Union Hub; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GRU Model
