Additional Information: Form Type 1; Constructional Feature Explosionproof, Dust-Ignitionproof; Used On Threaded Metal Conduit; Includes Internal Ground Screw and O-Ring; Application Indoor/Outdoor
Catalog Number: GRX100
Brand Name: UNILETS[R]
Model: GRT
Style: X
Hub Size: 1 Inch
Hub Type: External
Number Of Hubs: 4
Hub Location: Side

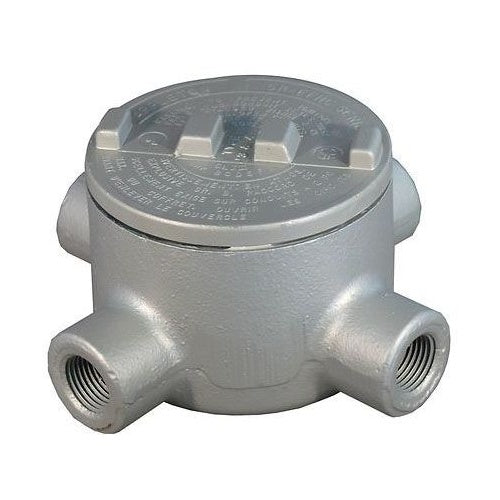

Catalog Description: UNILETS OUTLET BOX, NUMBER OF OUTLET: 4, MATERIAL: MALLEABLE IRON, SIZE: 1 IN, CABLE ENTRY: (4) 1 IN GRTX HUB, CUBIC CAPACITY: 18 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3.38 IN, FORM NUMBER: 1, HEIGHT: 3-3/4 IN, WIDTH: 3-3/4 IN, DEPTH: 2-1/4
Category: Miscellaneous Conduit Bodies
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Round Shape; 1 Inch Hub Size; 4 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class 1 Zone 1 and 2 Group Iia Iib, Class III Enclosure; Externally Threaded Cover Type; 18 Cubic Inch Capacity; X Style; (4) Side Hub Location; External Hub Type; 3.38 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Ambient Temperature Rating -25 to 40 Deg C; Includes Aluminum Cover, Internal Ground Screw and O-ring; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GR Model
