Additional Information: Includes Internal Ground Screw, O-Ring; Applicable Standard NEC/CEC
Catalog Number: GRX125
Brand Name: Unilets[R]
Model: GRX
Style: X
Hub Size: 1-1/4 Inch
Hub Type: External
Number Of Hubs: 4
Hub Location: (4) Side

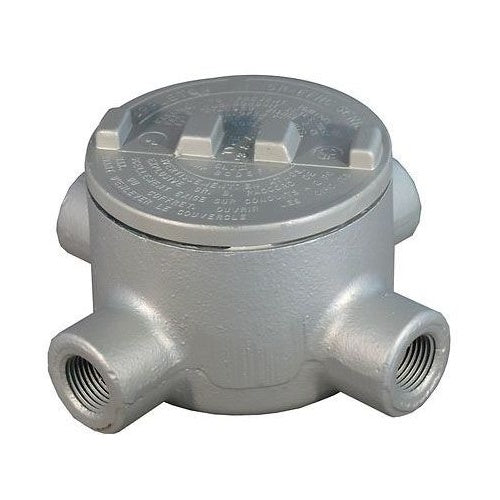

Catalog Description: UNILETS OUTLET BOX, NUMBER OF OUTLET: 4, MATERIAL: MALLEABLE IRON, SIZE: 1-1/4 IN, CABLE ENTRY: (4) 1-1/4 IN GRTX HUB, CUBIC CAPACITY: 31 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3.94 IN, FORM NUMBER: 2, HEIGHT: 4-1/2 IN, WIDTH: 4-1/2 IN, DEPT
Category: Miscellaneous Conduit Bodies
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Round Shape; 1-1/4 Inch Hub Size; 4 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class 1 Zone 1 and 2 Group Iia Iib, Class III Enclosure; Externally Threaded Cover Type; 31 Cubic Inch Capacity; X Style; (4) Side Hub Location; External Hub Type; 3.94 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Ambient Temperature Rating -25 to 40 Deg C; Includes Aluminum Cover, Internal Ground Screw and O-ring; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GR Model
