Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4
Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
Approval: UL 886, CSA C22.2
Additional Information: Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
Catalog Number: GUX100
Brand Name: Unilet[R]
Model: GUX
Style: X
Hub Size: 1 Inch
Hub Type: External
Number Of Hubs: 4
Hub Location: (4) Side

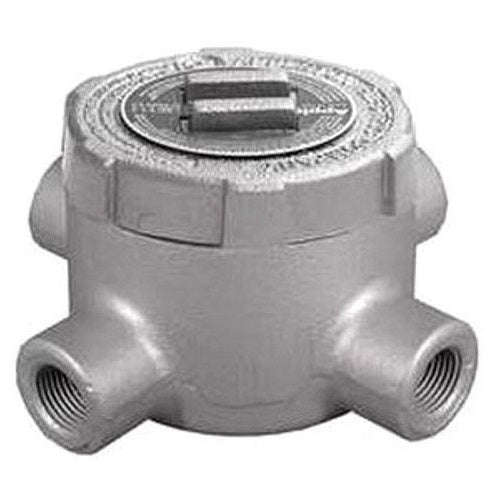

Catalog Description: UNILETS OUTLET BOX, NUMBER OF OUTLET: 4, MATERIAL: MALLEABLE IRON, SIZE: 1 IN, CABLE ENTRY: (4) 1 IN GUX HUB, CUBIC CAPACITY: 19 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3.38 IN, HEIGHT: 4.28 IN, WIDTH: 4.28 IN, DEPTH: 2-1/4 IN, FINISH: TRIPLE
Category: Miscellaneous Conduit Bodies
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Ductile Iron Material; Round Shape; 1 Inch Hub Size; 4 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4 Enclosure; Internally Threaded Cover Type; 19 Cubic Inch Capacity; X Style; (4) Side Hub Location; External Hub Type; 3.38 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Includes Cover, Gasket, Internal Ground Screw; Application Indoor and Outdoor; Applicable Standard Nec/Cec; GU Model
