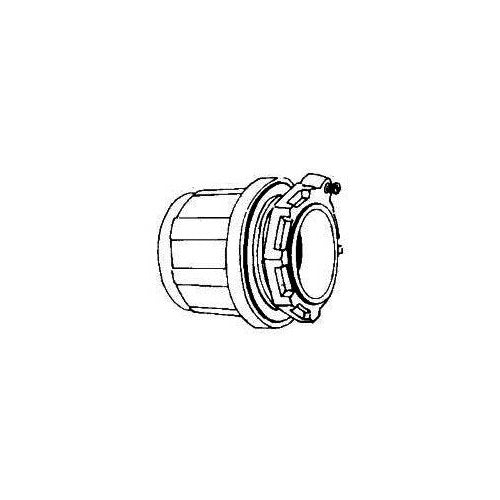

Appleton HUB-300B 3" Hub w/Bond Scr

Overview

Appleton HUB-300B 3" Hub w/Bond Scr

Product Specifications

• UPC: 78138150039
• Material: Zinc Electroplated Dichromate Dip Malleable Iron Body, Locknut, Zinc Plated Screw
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Includes Bonding Screw; Application Suitable for Service Entrance, General Purpose Fitting
• Catalog Number: HUB-300B
• Model: HUB
• Type: Threaded
• Throat Type: Insulated
• Trade Size: 3 Inch
• Size: 4.31 Inch Dia x 1.63 Inch L
• Constructional Feature: Dusttight, Watertight
• Ground Type: Locknut Bonding Screw
• Catalog Description: STRAIGHT INSULATED THROAT HUB WITH BONDING SCREW, SIZE: 3 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), HEIGHT: 4.31 IN, STANDARD: UL 514B, UL FILE NUMBER E14814, CSA C22.2 NO. 18.3, CSA 065178, NEMA FB-1, UL LISTED FOR CLASS I, DIVISION 2, FOR USE TO CONNECT RIGID METAL CONDUIT OR IMC TO A THREADLESS OPENING IN AN ENCLOSURE
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Type; Zinc Electroplated Ductile Iron (Body/Wedge), Zinc Electroplated Steel (Screw), Neoprene (O-ring), Nylon (Liner) Material; 4.63 Inch Diameter X 1.75 Inch Length Size; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; Locknut Bonding Screw; 3 Inch Trade Size; Dust/Water Tight; Insulated Throat Type; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Sheet Metal Enclosure, Service Entrance, General Purpose Fitting; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 781381500395
• SKU Name: app hub300b
