Material: Zinc Electroplated Malleable Iron (Body), Neoprene (Gasket)
Approval: UL 514B, CSA C22.2
Used On: Rigid/IMC
Additional Information: Application Suitable for Service Entrance, General Purpose Fitting; Applicable Standard NEMA FB-1
Catalog Number: HUB-400
Brand Name: Appleton
Model: HUB
Type: Threaded
Throat Type: Insulated
Trade Size: 4 Inch
Size: 5.44 Inch Diameter x 2.63 Inch Length
Constructional Feature: Flame Resistant

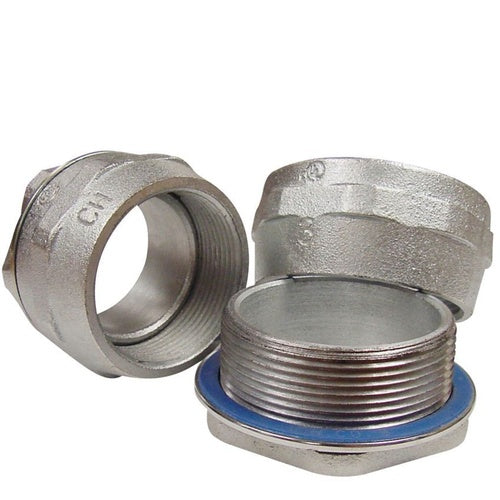

Catalog Description: STRAIGHT INSULATED THROAT HUB, SIZE: 4 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), STANDARD: UL 514B, UL FILE NUMBER E14814, CSA C22.2 NO. 18.3, CSA 065178, NEMA FB-1, UL LISTED F
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Female Threaded, Straight Type; Zinc Electroplated Ductile Iron (Body), Neoprene (Gasket) Material; 5.44 Inch Diameter X 2.63 Inch Length Size; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; Bonding Screw; 4 Inch Trade Size; Water Tight, Vibration Resistant; Insulated Throat Type; Hole Diameter 4.52 to 4.63 Inch; Panel Thickness 0.09 to 0.31 Inch; Enclosure Rating Class I Div 2, Class III Div 1 and 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard ANSI, Nec/Cec, NEMA FB-1/4/12
