Additional Information: Enclosure Type Class I Div 2, Class III Div 1 and 2, NEMA 4/12; Application Commercial, Industrial, Hazardous Location; Applicable Standard ANSI, NEMA FB-1, NEC/CEC

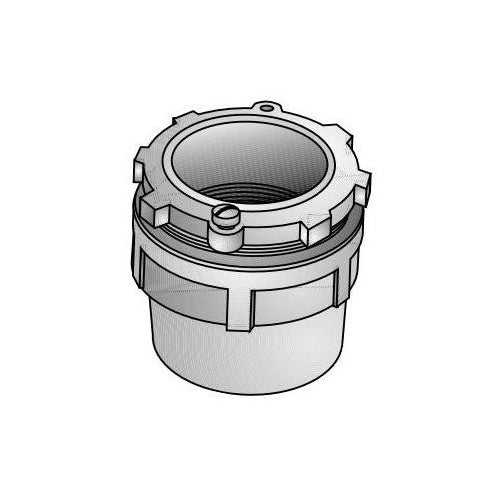

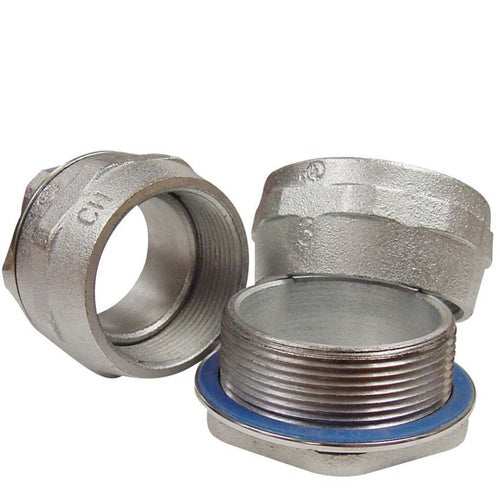

Catalog Number: HUB-50
Type: Threaded, Straight
Throat Type: Insulated
Trade Size: 1/2 Inch
Size: 1.08 Inch Diameter x 1.11 Inch Length
Constructional Feature: Water Tight, Vibration Resistant
Material: Zinc Electroplated Malleable Iron (Body), Neoprene (Gasket)
Approval: UL, CSA
Catalog Description: STRAIGHT INSULATED THROAT HUB, SIZE: 1/2 IN, MATERIAL: STEEL, FINISH: ZINC ELECTROPLATE, LENGTH: 1.11 IN, HEIGHT: 1.08 IN, STANDARD: UL 514B, UL FILE NUMBER E14814, CSA C22.2 NO. 18.3, CSA 065178, NEMA FB-1, UL LISTED FOR CLASS I, DIVISION
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Female Threaded, Straight Type; Zinc Electroplated Ductile Iron (Body), Neoprene (Gasket) Material; 1.08 Inch Diameter X 1.11 Inch Length Size; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 1/2 Inch Trade Size; Water Tight, Vibration Resistant; Insulated Throat Type; Hole Diameter 0.88 to 0.97 Inch; Panel Thickness 0.09 to 0.25 Inch; Enclosure Rating Class I Div 2, Class III Div 1 and 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard ANSI, Nec/Cec, NEMA FB-1/4/12
