Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1
Type: Insulated Hub With Grounding Screw
Cable Entry: 2.5
Construction: Rugged Die-Cast
Enclosure: NEMA 2, 3, 3R, 4, 4X, 5, 12, 13
Finish: Aluminum
Insulation Class: 150
Material: Aluminum
Size: 2 IN
Special Features: Rugged metallic construction ensures mechanical protection; May be used in wet or dry locations, indoors or outdoors; Insulated throat, rated up to 150 DEG C, prevents wire abrasion; Integral O-ring provides watertight seal; Unique profile permits easy wrenching; Smooth, accurately tapped threads facilitate installation; Watertight and corrosion resistant; Grounding version provides positive ground for external conductor; Hole diameter: 2.36 - 2-1/2 IN; Panel thickness: 0.06 - 1/4 IN; Aluminum bodies and nuts, BUNA-N o-ring, polypropylene insulator, stainless steel ground screw

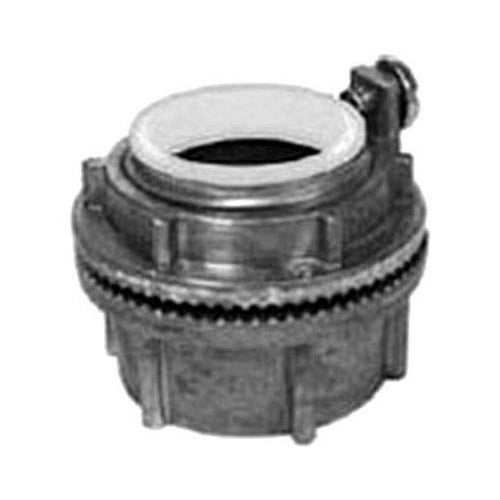

Catalog Description: APPLETON HUBG200S INSULATED HUB WITH GROUNDING SCREW, SIZE: 2 IN, MATERIAL: ALUMINUM, ENCLOSURE: NEMA 2, 3, 3R, 4, 4X, 5, 12, 13, INSULATION CLASS: 150 DEG C, FINISH: ALUMINUM, CABLE ENTRY: 2-1/2 IN KNOCK OUT, CONSTRUCTION: RUGGED DIE-CAST, LENGTH: 1.89 IN, HEIGHT: 3.23 IN, STANDARD: UL 514B, UL FILE NUMBER E14814, CSA C22.2 NO. 18.3, CSA 065178, NEMA FB-1, FOR USE TO CONNECT RIGID METAL CONDUIT OR IMC TO A THREADLESS OPENING IN AN ENCLOSURE
Category: Rigid Conduit Fittings - Aluminum
Full Technical Description: Tapped Thread Type; Copper-Free Die-Cast Aluminum (Body/Nut), Buna-N (O-ring), Polypropylene (Insulator), Stainless Steel (Ground Screw) Material; 3.23 Inch Diameter X 1.89 Inch Length Size; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; Grounding Lug; 2 Inch Trade Size; Corrosion Resistant, Water Tight; Insulated Throat Type; Knockout Hole Size 2.5 Inch; Hole Diameter 2.36 to 2.5 Inch; Panel Thickness 0.06 to 0.25 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 2/3/3R/4/4X/5/12/13; Application Commercial/Industrial, Hazardous/Wet/Dry Location, Indoor/Outdoor; Applicable Standard Nec/Cec
