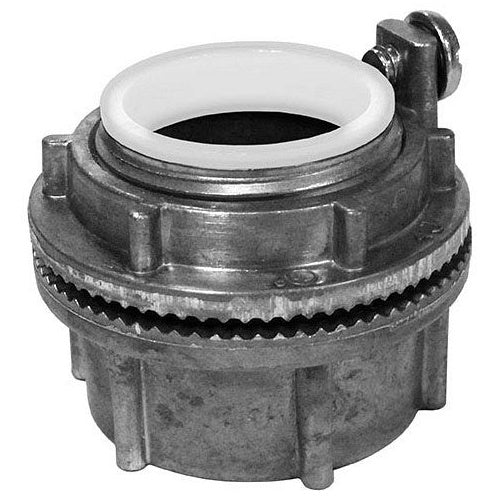

Type: Aluminum Die Cast, Watertight Hubs, Insulated and Gasketed
Color: Gray
Finish: Natural
Insulation Class: Insulated throat rated up to 105 degree C
Material: Aluminum/Polypropylene/Stainless Steel
Size: 3 IN
Special Features: Unique profile permits easy wrenching. Smooth, accurately tapped threads facilitate installation. Watertight and corrosion resistant. NEMA Types: 2,3,3R,4,4X,12, 13
Standard: UL Standard: 514B, UL Listed: E14814, E24264. E11853, CSA Standard: C22.2 No. 18.3. CSA Certified: 065178, NEMA: FB-1
Temperature Rating: 105 Degree C
Catalog Description: APPLETON, ALUMINUM DIE CAST, WATERTIGHT HUBS, FURNISHED WITH LUG FOR GROUNDING CONDUCTOR. INSULATED AND GASKETED, UNIQUE PROFILE PERMITS EASY WRENCHING. SMOOTH, ACCURATELY TAPPED THREADS FACILITATE INSTALLATION. CORROSION RESISTANT. NEMA TYPES: 2,3,3R,4,4X,12, 13. USED TO CONNECT RIGID METAL CONDUIT OR IMC TO A THREQADLESS OPENING IN AN ENCLOSURE. UL STANDARD: 514B, UL LISTED: E14814, E24264. E11853, CSA STANDARD: C22.2 NO. 18.3. CSA CERTIFIED: 065178, NEMA: FB-1, TRADE SIZE 3.0 IN
Category: Rigid Conduit Fittings - Aluminum
Full Technical Description: Tapped Thread Type; Copper-Free Die-Cast Aluminum (Body/Nut), Buna-N (O-ring), Polypropylene (Insulator), Stainless Steel (Ground Screw) Material; 4.36 Inch Diameter X 2.73 Inch Length Size; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; Grounding Lug; 3 Inch Trade Size; Corrosion Resistant, Water Tight; Insulated Throat Type; Knockout Hole Size 3.59 Inch; Hole Diameter 3.56 to 3.63 Inch; Panel Thickness 0.06 to 0.25 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 2/3/3R/4/4X/5/12/13; Application Commercial/Industrial,
