Additional Information: Form Type Form 85; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
Catalog Number: LB150-A
Brand Name: Appleton
Model: LB
Configuration: LB
Hub Size: 1-1/2 Inch
Number Of Hubs: 2
Hub Location: 90 Degree
Access Opening: Back

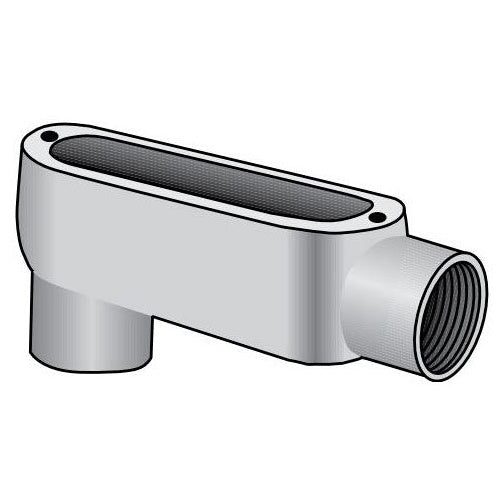

Catalog Description: FORM 85 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 1-1/2 IN, FORM: 85, LENGTH: 7.88 IN, HEIGHT: 3.81 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, CSA C22.2 NO. 18.3, CSA 065183, NEMA FB-1, FOR USE WITH RIGID STEEL, RIGID ALUMINUM CONDUIT, IMC AND EMT
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 7.88 Inch Length X 3.81 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 85 Form Type; Back Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 1/0 AWG; Capacity 35 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
