Additional Information: Capacity 77.5 Cubic Inch; Includes Cover, Gasket; Applicable Standard NEMA FB-1
Catalog Number: LB-200ACGA
Brand Name: Appleton
Model: LB
Access Opening: Back
Configuration: LB
Cover Type: Plain Aluminum
Hub Location: 90 Degree
Number Of Hubs: 2

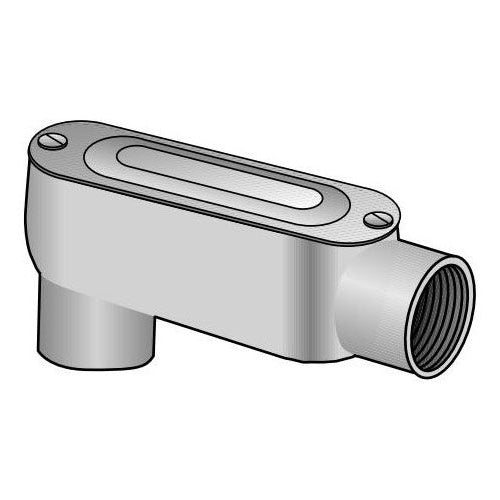

Catalog Description: FORM 85 UNILETS TYPE LB CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 2 IN, FORM: 85, LENGTH: 10.19 IN, HEIGHT: 4.56 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED,
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Enamel Copper-Free Aluminum (Body), Neoprene (Gasket) Material; 10.19 Inch Length X 4.56 Inch Height Size; Imc/Rigid Conduit Used on; 2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A, CSA C22.2 Approval; Epoxy Powder Coated Enamel Copper-Free Aluminum Cover Type; 90 Degree Hub Location; Form 85 Form Type; Back Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 4/0 AWG; Enclosure Rating Class I Div 2/2.1; Includes Assembled Cover and Gasket; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
