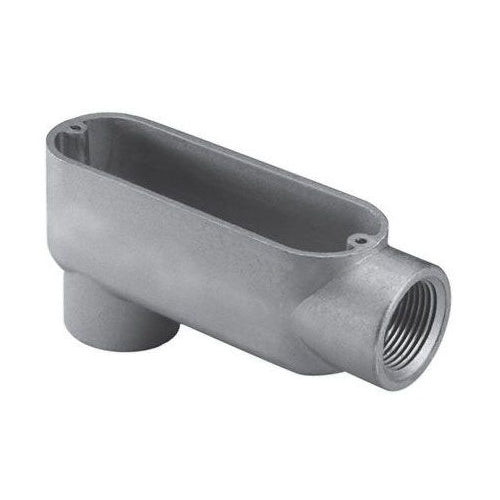

Appleton LB350-A 3-1/2" Aluminum LB-Type Conduit Body

Overview

Appleton LB350-A 3-1/2" Aluminum LB-Type Conduit Body

Product Specifications

• UPC: 78138147745
• Size: 16.5 Inch L x 6.81 Inch H
• Installation: Threaded
• Material: Epoxy Powder Coated Sand Cast Copper Free Aluminum
• Form Type: Form 85
• Approval: UL 514A/514B, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Applicable Standard NEMA FB-1; Capacity 300 Cu Inch
• Catalog Number: LB350-A
• Brand Name: Unilet[R], Form 85[TM]
• Access Opening: Back
• Configuration: LB
• Cover Type: Aluminum/Malleable Iron/Steel
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Hub Size: 3-1/2 Inch
• Catalog Description: FORM 85 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 3-1/2 IN, FORM: 85, LENGTH: 16-1/2 IN, HEIGHT: 6.81 IN, MATERIAL: SAND CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, CSA C22.2 NO. 18.3, CSA 065183, NEMA FB-1, FOR USE WITH RIGID STEEL, RIGID ALUMINUM CONDUIT, IMC AND EMT
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Sand Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 16.5 Inch Length X 6.81 Inch Height Size; Imc/Rigid Conduit Used on; 3-1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 85 Form Type; Back Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 500 MCM; Capacity 300 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381477451
• SKU Name: app lb350a
